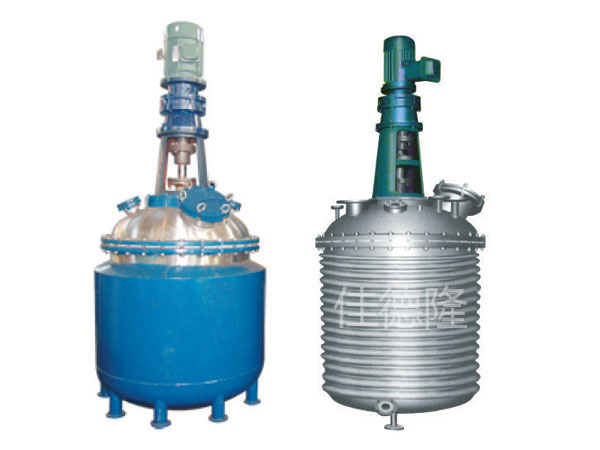

The stainless steel reaction pot is composed of a pot cover, a barrel, a jacket, a stirrer, a shaft seal transmission device and a support. The pot body and parts in contact with the materials in the pot are made of OCrl8Ni9 or 1Crl8Ni9Ti stainless steel acid-resistant steel plate.
Due to the different production processes and operating conditions of users, the jacket heating types are divided into electric heating rod heating, steam heating, and heat conduction oil circulation heating. The shaft seal device is divided into packing seal and mechanical seal. The stirring types include anchor, slurry, and Pot wheel type, push type or frame type. The number of holes, specifications or other requirements can be designed and manufactured according to user requirements.
Main technical parameters of stainless steel reactor with outer coil heating
specification
|
Actual capacity (L)
|
Diameter of cylinder (mm)
|
Heat transfer area of outer coil (m2)
|
Heat transfer area of inner coil (m2)
|
Motor dynamic rate (kw)
|
500L
|
550
|
900
|
2.438
|
2
|
2.2
|
1000L
|
1100
|
1200
|
2.867
|
2.6
|
4
|
1500L
|
1650
|
1200
|
3.537
|
3.1
|
4
|
2000L
|
2200
|
1300
|
4.165
|
3.8
|
5.5
|
3000L
|
3300
|
1500
|
5.569
|
5.4
|
7.5
|
6000L
|
6600
|
1800
|
10.323
|
8.7
|
15
|
10000L
|
11000
|
2200
|
50.345
|
10.9
|
18.5
|
20000L
|
22000
|
2400
|
101.679
|
13.8
|
twenty two
|
Specifications and main technical parameters of electric heating reactor
model
|
Nominal capacity (L)
|
Actual capacity (L)
|
Electric heating power (kw)
|
Jacket capacity (L)
|
Inner pot size (mm)
|
Jacket size (mm)
|
Outer diameter size (mm)
|
Center distance of support copper hole (mm)
|
Reducer model
|
Motor power (n/kw)
|
Stirring speed (rpm)
|
Weight (kg)
|
DFG100
|
100
|
127
|
6×2
|
127
|
φ500
|
φ700
|
φ1004×2120
|
φ894
|
BLB11-17
|
1450/1.1
|
80
|
340
|
DFG200
|
200
|
247
|
6×2
|
200
|
φ600
|
φ800
|
φ1104×2310
|
φ960
|
BLB11-17
|
1450/1.5
|
80
|
520
|
DFG300
|
300
|
327
|
6×3
|
218
|
φ700
|
φ900
|
φ1208×2495
|
φ1098
|
BLB12-17
|
1450/2.2
|
80
|
700
|
DFG500
|
500
|
509
|
9×3
|
269
|
φ900
|
φ1100
|
φ1468×2695
|
φ1328
|
BLB12-17
|
1450/2.2
|
80
|
930
|
DFG1000
|
1000
|
1017
|
9×4
|
400
|
φ1200
|
φ1400
|
φ1896×3110
|
φ3696
|
BLB13-17
|
1450/3 or 1450/4
|
80
|
1610
|
DFG1500
|
1500
|
1703
|
9×4
|
500
|
φ1400
|
φ1600
|
φ2050×3700
|
φ1850
|
BLB13-17
|
1450/4
|
80
|
1920
|
DFG2000
|
2000
|
2244
|
12×4
|
600
|
φ1500
|
φ1700
|
φ2150×3975
|
φ1980
|
BLB13-17
|
1450/5.5
|
80
|
2295
|
DFG3000
|
3000
|
3055
|
15×4
|
800
|
φ1600
|
φ1800
|
φ2250×4250
|
φ2050
|
BLB13-17
|
1450/7.5
|
80
|
3020
|
|
