It has simple structure, convenient operation, long service life, stable and reliable performance, low steam consumption, strong application performance, and good product quality. It is especially suitable for drying paste materials that are not resistant to high temperature, flammable, and easy to oxidize under temperature regulation. The machine has been proved to be a good drying equipment after long-term use by users. Principle: The material to be dried is added in the middle of the upper part of the shell. Under the stirring of the rake teeth that are constantly rotating forward and backward, the material moves back and forth in the axial direction, and the surface contacting the inner wall of the shell is constantly updated. It is indirectly heated by the steam. Uniform mixing and crushing of the crushing rods make the surface water of the material more favorable to discharge. The vaporized water is vented from the vacuum pump outlet through the dry dust collector, wet dust collector, and condenser. Structure: The main part of the vacuum rake dryer. |
|

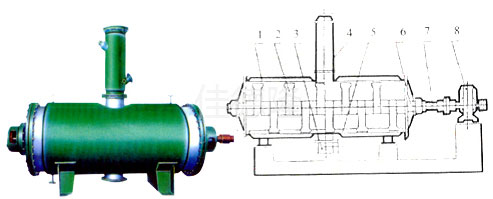

1. Shell 2. Harrow teeth 3. Discharge device 4. Feeding device 5. Crushing rod
6. Sealing device 7. Mixing shaft 8. Transmission device |
Applicable materials |
Mud-like high-paste-like materials below 100 meshes, various pigments, mud-head-like materials are filtered and centrifuged, and soda ash detergent,
alkali stone starch, dye pigments, clay ash and other clays, etc. |
Apply under proper conditions |
Suspensions such as synthetic fiber, crystalline vacuum liquid, emulsion sweet potato chips, mineral sand, etc. |
Model and technical characteristics |
Main parameter model |
Nominal volume |
Heat transfer area |
One-time loading |
Absolute working pressure |
Operating temperature |
Spindle speed |
Material |
weight |
Motor Power |
Overall dimensions length × width × height |
Inside the cylinder |
In the jacket |
XPG0.5 |
0.5 |
1.86 |
0.2 |
0.021 |
0.686 |
435 |
15-20 |
|
|
Note: 3 |
|
Supplement: 5.5 |
XPG1 |
1 |
6 |
0.75 |
0.021 |
0.686 |
435 |
9 |
A3 |
3400 |
5.5 |
3700×945×3270 |
1Cr18Ni9Ti |
3300 |
XPG2 |
2 |
8 |
1.2 |
0.021 |
0.588 |
425 |
9 |
A3 |
4900 |
11 |
4570×1130×3455 |
1Cr18Ni9Ti |
4800 |
XPG3 |
3 |
11.5 |
11.5 |
1.021 |
0.588 |
425 |
9 |
A3 |
6400 |
15 |
6076×1130×2980 |
|
|
