Products
Flaker dryer


Working principle : Rotary drum flake formation is a cooling and crystallization process. The molten material in the tray contacts the cooled drum to form a material film on the surface of the drum. The material film is cooled and crystallized by heat exchange between the material film and the drum wall. , The crystalline material film is scraped off by the scraper and becomes a sheet product.

Rotary drum drying is a continuous operation equipment that heats and dries the liquid material or ribbon material attached to the outer wall of the drum by means of heat conduction through the rotating drum.

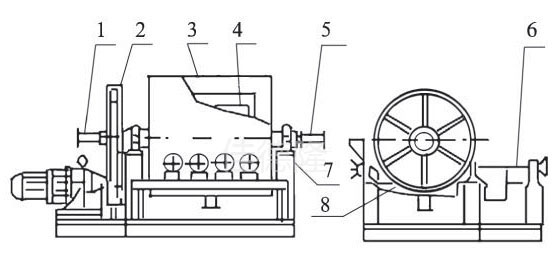

 Structure introduction

  • 1. Water inlet
  • 2. Driving part
  • 3. Drum
  • 4. Cooling system
  • 5. Water outlet system
  • 6. Scraper system
  • 7. Rack
  • 8. Material tray




Features

Performance reaches the level of foreign equipment in the years

Equipped with a side scraper to avoid material accumulation on the side of the drum

The equipment has a compact structure and a small footprint

Half pipe jacketed tray, safe and reliable

Atomized cooling, good cooling effect

Infinitely variable speed, adjustable drum speed

High drum accuracy

Wide application range, simple and flexible operation

Using multiple groups of scrapers, flexible adjustment

Multi-functional, both flakes and drying



Scope of application

1. Knot

     Polyethylene oligomer, petroleum resin, oxidized polyethylene and other polymer products

Organic chemical products such as phthalic anhydride, maleic anhydride, naphthalene, Pingjia, higher fatty alcohol, chloroacetic acid, trimethylpropane, guanidine nitrate, bisphenol, isophthalic acid, etc.

Sodium sulfide, caustic soda, sodium hydrosulfide, calcium chloride and other inorganic chemical products

2. Dry

   Paste dyes such as sulfide blue and sulfide

  Inorganic solutions such as sodium dihydrogen carbonate, sodium phosphate, magnesium chloride, etc.

  Food solutions such as skimmed milk and milk


Specifications and main parameters

specification

Drum specifications

mm

Motor Power

KW

Hot shaft speed

r/min

Reference dimensions (mm)

L

W

H

DZ-1

600×600

1.5~2

0.3~15

1400

1000

1200

DZ-2

800×1000

2.2~3

0.3~15

1800

1200

1400

DZ-4.5

1000×1200

4~5.5

0.3~11

2000

1400

1400

DZ-7.5

1200×1500

5.5~7.5

0.3~8

2400

1600

1600

DZ-9

1500×1800

7.5~11

0.3~7

2700

2000

2000

DZ-22

2000×3000

15~18.5

0.3~5

3900

2500

2600
