Vacuum pressure reducing concentration tank series

Main application : It is suitable for the concentration of the liquid in the pharmaceutical, food, chemical and other industries. The evaporation intensity is generally 50-60Kg/m2h. The specific gravity of the concentrated liquid should not be greater than 1.25, otherwise it will cause difficulties in discharging.


(Type I)

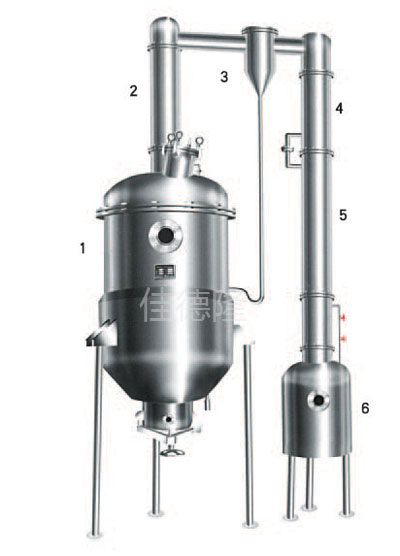

Schematic diagram of main components

1. Concentration tank

2. The first condenser

3. Vapor-liquid separator

4. The second condenser

5. Cooler

6. Receiving tank



(Type II)

Structure : This equipment mainly consists of a concentration tank, a first condenser, a vapor-liquid separator, a second condenser, a cooler, and a liquid-receiving barrel. All components are made of stainless steel. The thickening tank is a jacket structure, the condenser is a tube type, and the cooler is a coil type.

       Volume (L)

project

50

100

200

300

500

700

Steam pressure MPa

≤0.15

≤0.15

≤0.15

≤0.15

≤0.15

≤0.15

Vacuum degree mmHg

≤700

≤700

≤640

≤640

≤600

≤600

Heating area M2

0.4

0.59

0.8

1.1

1.45

1.8

Condensing area M2

1.2

1.7

2.45

3.0

3.2

3.6

Cooling area M2

0.25

0.35

0.4

0.6

0.7

0.85

Volume of receiving tank L

15

45

60

75

100

125

Equipment net weight kg

~350

~450

~550

~650

~800

~1000

Dimensions mm

Length×width×height

1200×600×2200

1350×750×2200

1700×800×2700

2100×1200×3400

2100×1200×3400

2400×1300×3400
