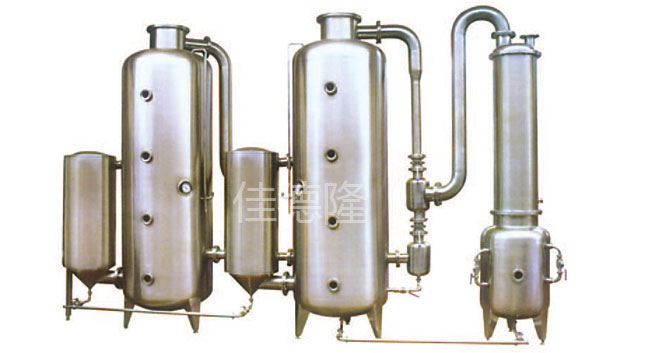

Wz2 double effect external circulation vacuum evaporator

Uses: WZ2 evaporator tube rice is used in the evaporation and concentration of water or organic solvent solutions in medicine, food, chemical, light industry and other industries. It is especially suitable for heat-sensitive materials (such as traditional Chinese medicine production water, alcohol extract, antibiotic fermentation liquid, milk, fruit juice, etc.). Continuous low-temperature concentration under vacuum conditions can ensure product quality.

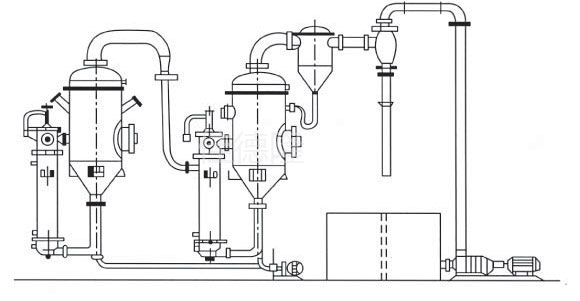

WZ2 double-effect external circulation vacuum evaporator process diagram:




Main technical parameters (for reference)

index/

project

WZ2-500

WZ2-1000

WZ2-1500

WZ2-2000

Evaporation capacity (clear water) kg/h

500

1000

1500

2000

Air consumption kg/h

390

780

1170

1560

Overall dimensions (L×W×H) m

4×1.5×3.3

5×1.6×3.5

6×1.6×3.7

6.5×1.7×4.3

Circulating water consumption T/h

6

12

15

18

Evaporation temperature

One effect °C

95-100

Vacuum

One effect

Atmospheric

Two-effect ℃

65-75

Mpa

Two-effect

-0.07~0.09

Steam pressure Mpa

≤0.2

Concentrated specific gravity

1.2-1.3
