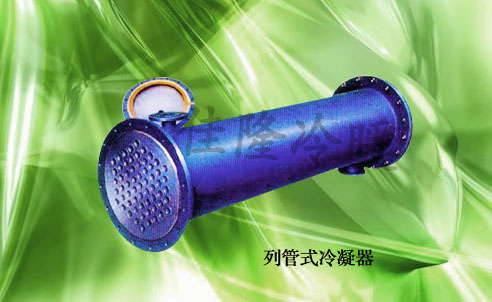

The tube-and-tube condensers produced by our factory are divided into three types: carbon steel tube-and-tube condensers, stainless steel tube-and-tube condensers, and carbon steel and stainless steel mixed tube-and-tube condensers. They are divided into fixed tube plate type and floating head according to the form. Type, U-shaped tube heat exchanger, according to the structure is divided into single-tube pass, double-tube pass and multi-tube pass, heat transfer area 1 ~ 500m2, can be customized according to user needs.
| Nominal diameter |
Number of tubes |
Number of tubes |
Nominal value of heat exchange area/calculated value |
The cross-sectional area of the tube pass The flow rate when the flow velocity of the tube pass is 0.5m/sec m/hr |
Nominal pressure |
| Length of tube (m) |
φ25×2.5 |
| 1500 |
2000 |
3000 |
4000 |
6000 |
φ25×2 |
| 159 |
1 |
14 |
1.51.62 |
22.17 |
33.27 |
|
|
0.0044/
0.0049
|
7.92/
8.82 |
0.6 |
| 219 |
1 |
26 |
3/3.00 |
4/4.02 |
6/6.06 |
8/8.1 |
|
0.0082/
0.0090 |
14.76/
16.20 |
| |
2 |
26 |
3/3.00 |
4/4.02 |
6/6.06 |
8/8.81 |
|
0.0041/
0.0045 |
7.38/
8.01 |
| 273 |
1 |
44 |
5/5.08 |
7/5.18 |
10/10.26 |
14/13.72 |
21/20.63 |
0.0138/
0.0152 |
24.84/
27.36 |
| |
2 |
40 |
5/4.62 |
6/6.19 |
9/9.33 |
12/12.47 |
19/18.76 |
0.0063/
0.0069 |
11.24/
12.42 |
| 325 |
1 |
60 |
7/6.93 |
9/9.28 |
14/14.00 |
19/18.71 |
28/28.13 |
0.0188/
0.0208 |
33.84/
37.44 |
| |
2 |
56 |
6/6.47 |
9/8.66 |
13/13.05 |
17/17.46 |
36/26.26 |
0.0088/
0.0097 |
15.84/
17.46 |
| 400 |
1 |
119 |
14/13.47 |
18/18.41 |
28/27.76 |
37/37.10 |
55/55.8 |
0.0374/
0.0412 |
67.32/
74.16 |
| |
2 |
110 |
13/12.70 |
17/17.02 |
26/25.66 |
34/34.20 |
50/51.58 |
0.0173 /
0.0190 |
31.14/
34.20 |
| 500 |
1 |
185 |
|
|
45/4.15 |
55/57.68 |
85/86.74 |
0.0581/
0.0641 |
104.58/
115.38 |
| |
2 |
180 |
|
|
40/41.99 |
55/57.68 |
85/86.74 |
0.0283/
0.0312 |
50.94/
56.16 |
| 600 |
1 |
269 |
|
|
60/62.7 |
85/83.88 |
125/126.13 |
0.0845/
0.0932 |
152.10 / 167.76 |
| |
2 |
266 |
|
|
60/32.05 |
80/82.94 |
125/14.72 |
0.0418/
0.0461 |
75.24/
83.98 |
| 700 |
1 |
379 |
|
|
90/88.41 |
120/118.17 |
175/177.71 |
0.0091/
0.1313 |
214.38/
236.34 |
| |
2 |
358 |
|
|
85/83.51 |
110/111.62 |
165/167.85 |
0.0562/
0.0620 |
101.16/
111.60 |
| 800 |
1 |
511 |
|
|
120/119.20 |
160/159.16 |
240/239.60 |
0.1605/
0.1770 |
288.90/
318.60 |
| |
2 |
488 |
|
|
115/113.83 |
150/152.16 |
230/228.81 |
0.0767/
0.0845 |
138.06 /
152.10 |
| 900 |
1 |
649 |
|
|
150/151.39 |
200/202.36 |
305/304.3 |
0.2039/
0.2248 |
367.02/
404.46 |
| |
2 |
630 |
|
|
145/146.96 |
195/196.44 |
295/295.40 |
0.0990/
0.1091 |
178.20/
196.38 |
| 1000 |
1 |
805 |
|
|
185/187.78 |
250/251.00 |
375/377.45 |
0.2529/
0.2788 |
455.22/
501.74 |
| |
2 |
792 |
|
|
185/184.75 |
245/246.95 |
370/371.36 |
0.1244/
0.1374 |
223.92/
246.96 |
|
